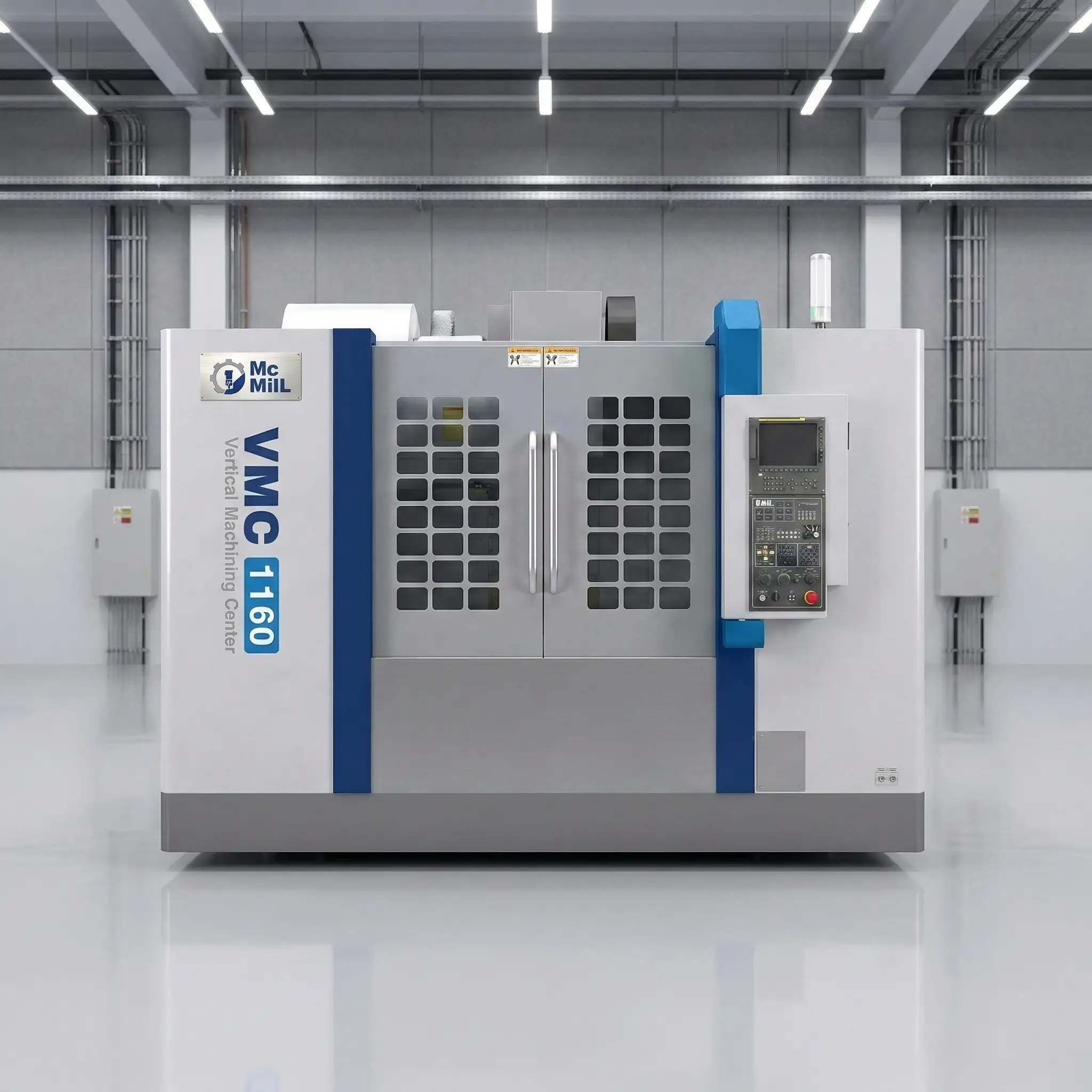

VMC 1160
The VMC 1160 Vertical Machining Center marks a transition into large-scale production capabilities. Featuring an expansive X-axis travel of 1100 mm and a robust table that accommodates up to 1000 kg, it is perfectly suited for heavy industrial components and large mold making. Powered by a high-torque 11/15 kW motor and a 10,000 rpm direct-drive spindle, it delivers the optimal balance of raw power, precision, and immense capacity for demanding shop floors.
The future is now. New VMC 1160.
Exceptional Capacity & Rigidity
Weighing 6,400 kg, the VMC 1160 provides a highly rigid and stable cast-iron foundation essential for heavy-duty machining. It is equipped with a formidable 11/15 kW spindle motor driving a 10,000 rpm direct-drive BT-40 spindle. This configuration ensures rapid material removal rates and superior surface finishes, maintaining extreme accuracy even under high cutting loads.

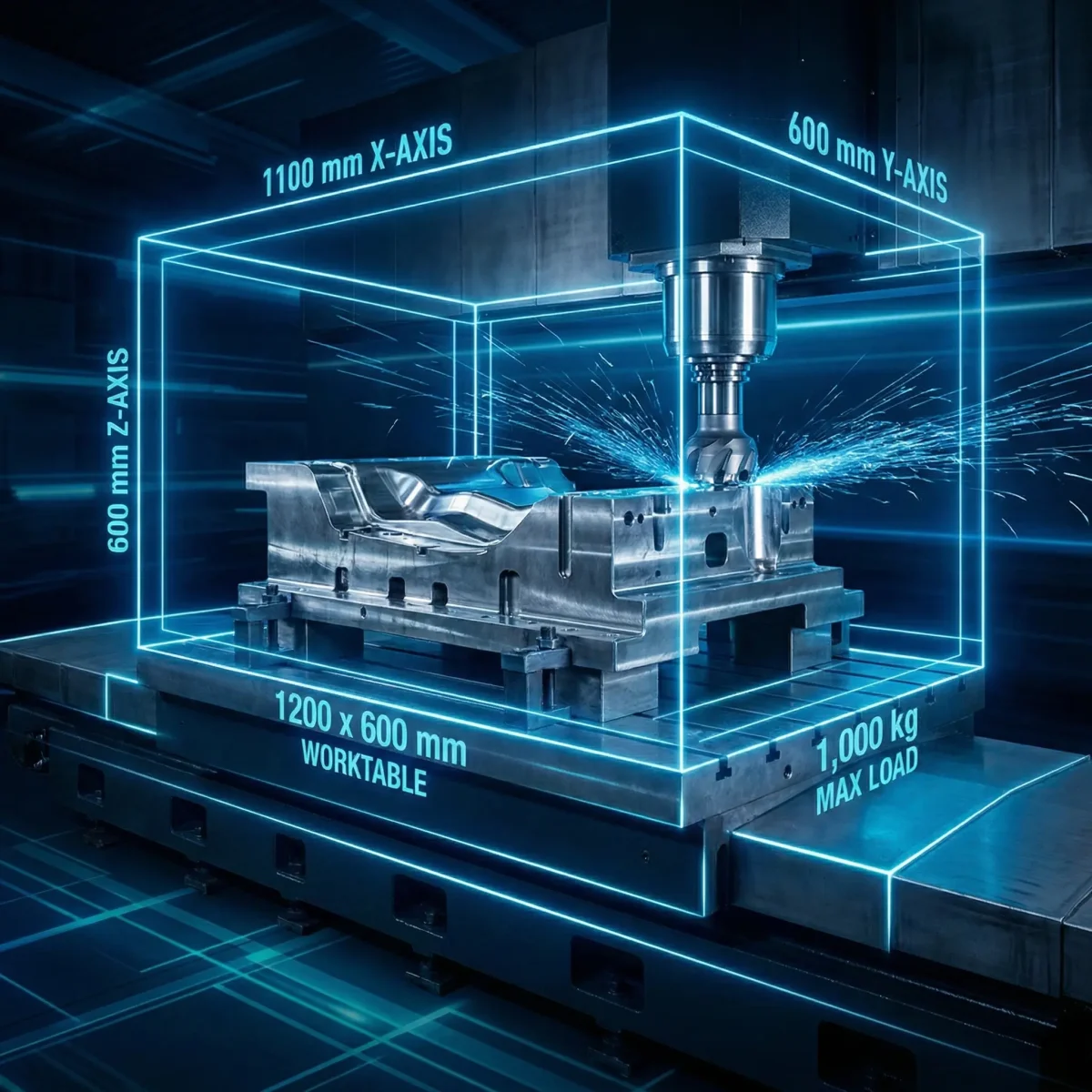

Expansive Machining Envelope
Designed to tackle large-scale manufacturing challenges, this model features a massive 1200 x 600 mm worktable with an impressive load capacity of 1,000 kg. With generous X, Y, and Z-axis travels of 1100, 600, and 600 mm respectively, the VMC 1160 offers the necessary volume to effortlessly process oversized workpieces, automotive parts, and complex molds.
Industrial-Grade Capabilities
Empower your manufacturing process with structural designs and advanced features engineered for demanding industrial applications. Minimize setup times, ensure smooth operations, and maintain flawless workpiece standards.
High-Torque Spindle System
A robust 10,000 rpm direct-drive spindle (BT-40) powered by an 11/15 kW motor, built specifically for heavy material removal and high-precision finishes in rigorous environments.
Advanced CNC Controller
A state-of-the-art control system that processes G-Code commands with speed and precision. It features a user-friendly interface and supports versatile data transfer for modern shop floors.
Fast Tool Change (ATC)
A high-speed, highly accurate Automatic Tool Changer (ATC) significantly reduces tool swap times, ensuring a seamless and continuous production process to maximize your output.
Expert Support by Machine Tech
Backed by the Machine Tech engineering team with over 30 years of experience, we provide unparalleled after-sales service. From comprehensive consultation and operational guidance to prompt maintenance support, we ensure your production never stops.
Specification
| Description | Detail |
| Brand | Mc Mill |
| Model | VMC 1160 |
| X-axis Travel | 1100 mm. |
| Y-axis Travel | 600 mm. |
| Z-axis Travel | 600 mm. |
| Distance from Spindle Nose to Table | 120-720 mm. |
| Distance from Spindle Center to Column Face | 650 mm. |
| Table Size (LxW) | 1200×600 mm. |
| T- Slot | 5x18x100 mm. |
| Max. Table Load | 1000 Kgs. |
| X-axis Feed Rates | 30 M/min |
| Y-axis Feed Rates | 30 M/min |
| Z-axis Feed Rates | 24 M/min |
| Positioning Accuracy | 0.008/300 mm. |
| Repeatability | 0.005/300 mm. |
| X-axis Slipway Type | Linear Way |
| Y-axis Slipway Type | Linear Way |
| Z-axis Slipway Type | Linear Way |
| Spindle Type | BT-40 |
| Spindle Motor | 11/15 Kw. |
| Direct-Drive Spindle Speed | 10,000 rpm. |
| Machine Weight | 6400 Kgs. |
| Machine Dimensions (WxDxH) | 3200x2400x2550mm. |
