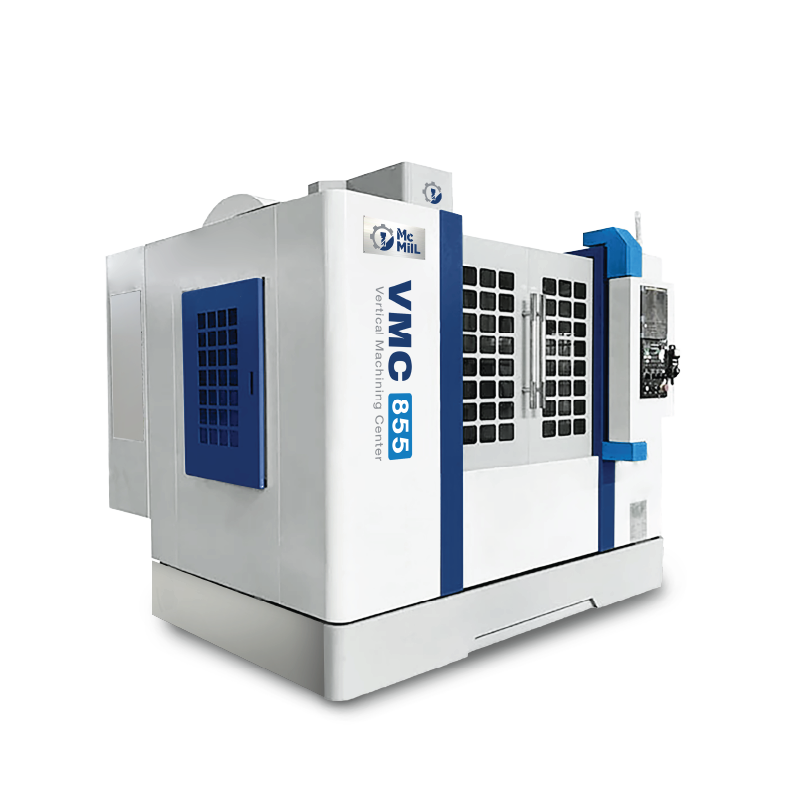

VMC 855
The VMC 855 Vertical Machining Center is engineered for heavy-duty performance and larger workpiece capacities. Featuring an expanded travel range of 800 x 550 x 550 mm (X/Y/Z) and a robust table supporting up to 600 kg, it is ideal for demanding industrial applications. Powered by a formidable 11/15 kW motor and a 10,000 rpm direct-drive spindle, this machine delivers exceptional cutting power and uncompromising precision.
The future is now. New VMC 855.
Uncompromising Power & Rigidity
Weighing in at a substantial 5,800 kg, the VMC 855 offers exceptional structural rigidity designed to absorb vibrations during heavy cutting operations. It is equipped with a high-torque 11/15 kW spindle motor and a 10,000 rpm direct-drive BT-40 spindle, ensuring superior material removal rates and flawless surface finishes even when machining tough materials.

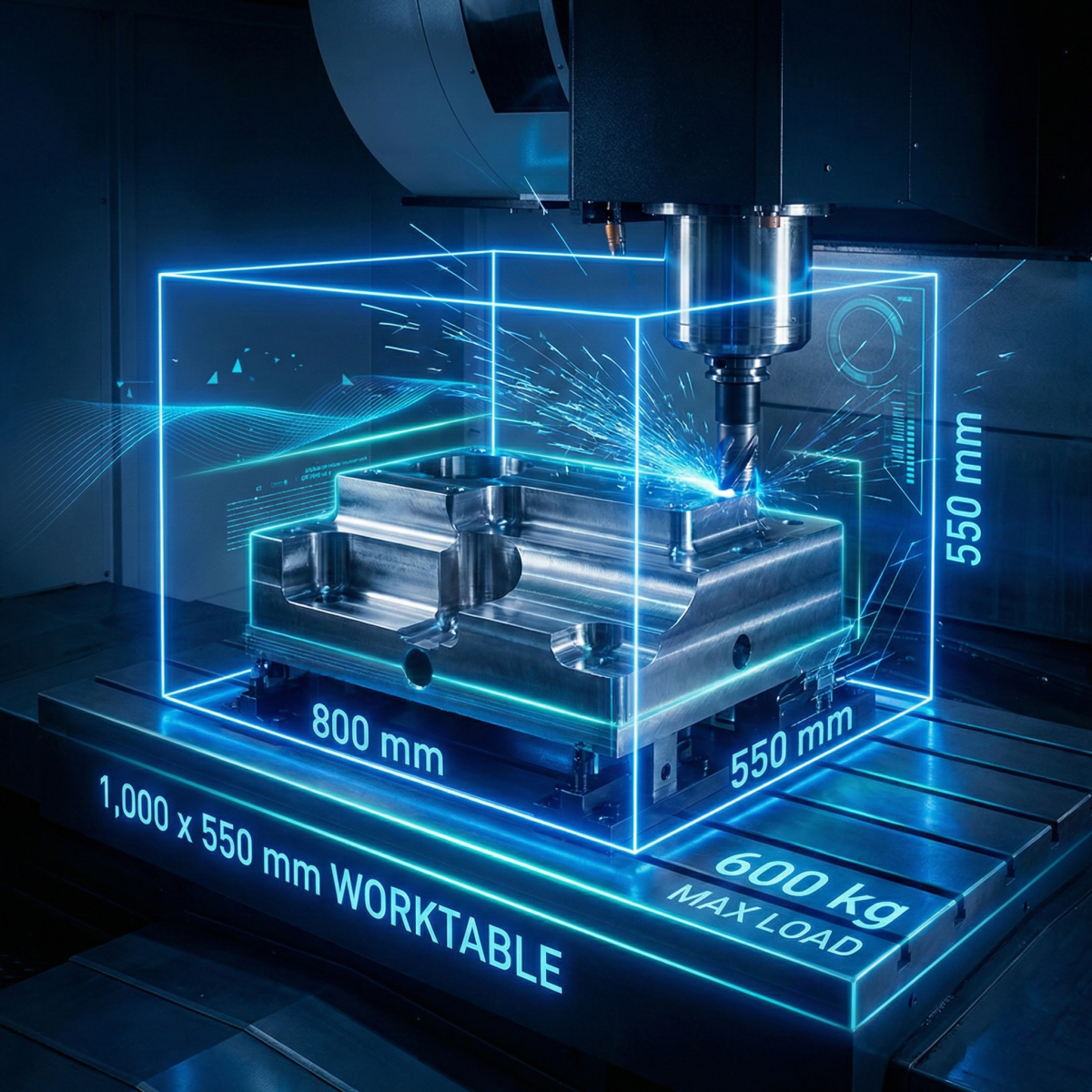

Expanded Machining Capacity
Designed to handle substantial manufacturing tasks, the machine boasts a generously sized 1,000 x 550 mm worktable with a maximum load capacity of 600 kg. The 800 x 550 x 550 mm working envelope provides the necessary space and flexibility for machining medium-to-large components, molds, and complex industrial parts.
Industrial-Grade Capabilities
Empower your manufacturing process with structural designs and advanced features engineered for demanding industrial applications. Minimize setup times, ensure smooth operations, and maintain flawless workpiece standards.
Heavy-Duty Spindle System
A robust 10,000 rpm direct-drive spindle (BT-40) powered by an 11/15 kW motor, built specifically for high-torque applications and rapid material removal in rigorous environments.
Advanced CNC Controller
A state-of-the-art control system that processes G-Code commands with speed and precision. It features a user-friendly interface and supports versatile data transfer for modern shop floors.
Fast Tool Change (ATC)
A high-speed, highly accurate Automatic Tool Changer (ATC) significantly reduces tool swap times, ensuring a seamless and continuous production process to maximize your output.
Expert Support by Machine Tech
Backed by the Machine Tech engineering team with over 30 years of experience, we provide unparalleled after-sales service. From comprehensive consultation and operational guidance to prompt maintenance support, we ensure your production never stops.
Specification
| Description | Detail |
| Brand | Mc Mill |
| Model | VMC 855 |
| X-axis Travel | 800 mm. |
| Y-axis Travel | 550 mm. |
| Z-axis Travel | 550 mm. |
| Distance from Spindle Nose to Table | 120-670 mm. |
| Distance from Spindle Center to Column Face | 590 mm. |
| Table Size (LxW) | 1000×550 mm. |
| T- Slot | 5x18x90 mm. |
| Max. Table Load | 600 Kgs. |
| X-axis Feed Rates | 30 M/min |
| Y-axis Feed Rates | 30 M/min |
| Z-axis Feed Rates | 30 M/min |
| Positioning Accuracy | 0.008/300 mm. |
| Repeatability | 0.005/300 mm. |
| X-axis Slipway Type | Linear Way |
| Y-axis Slipway Type | Linear Way |
| Z-axis Slipway Type | Linear Way |
| Spindle Type | BT-40 |
| Spindle Motor | 11/15 Kw. |
| Direct-Drive Spindle Speed | 10,000 rpm. |
| Machine Weight | 5800 Kgs. |
| Machine Dimensions (WxDxH) | 2700x2400x2450mm. |
