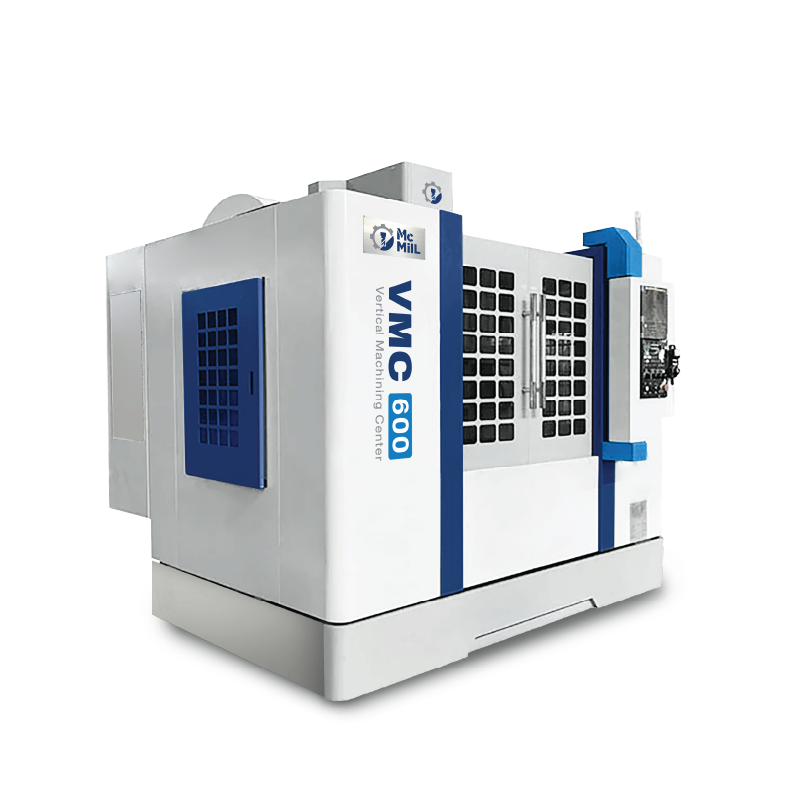

VMC 600
The VMC 600 Vertical Machining Center is engineered to meet the demands of high-precision component manufacturing within confined spaces. Featuring a highly rigid structure that minimizes vibration during operation, it offers X, Y, and Z-axis travels of 500 mm, 350 mm, and 450 mm, respectively. It is the ideal solution for small to medium-sized industrial facilities looking to cost-effectively maximize efficiency and elevate production quality.
The future is now. New VMC 600.

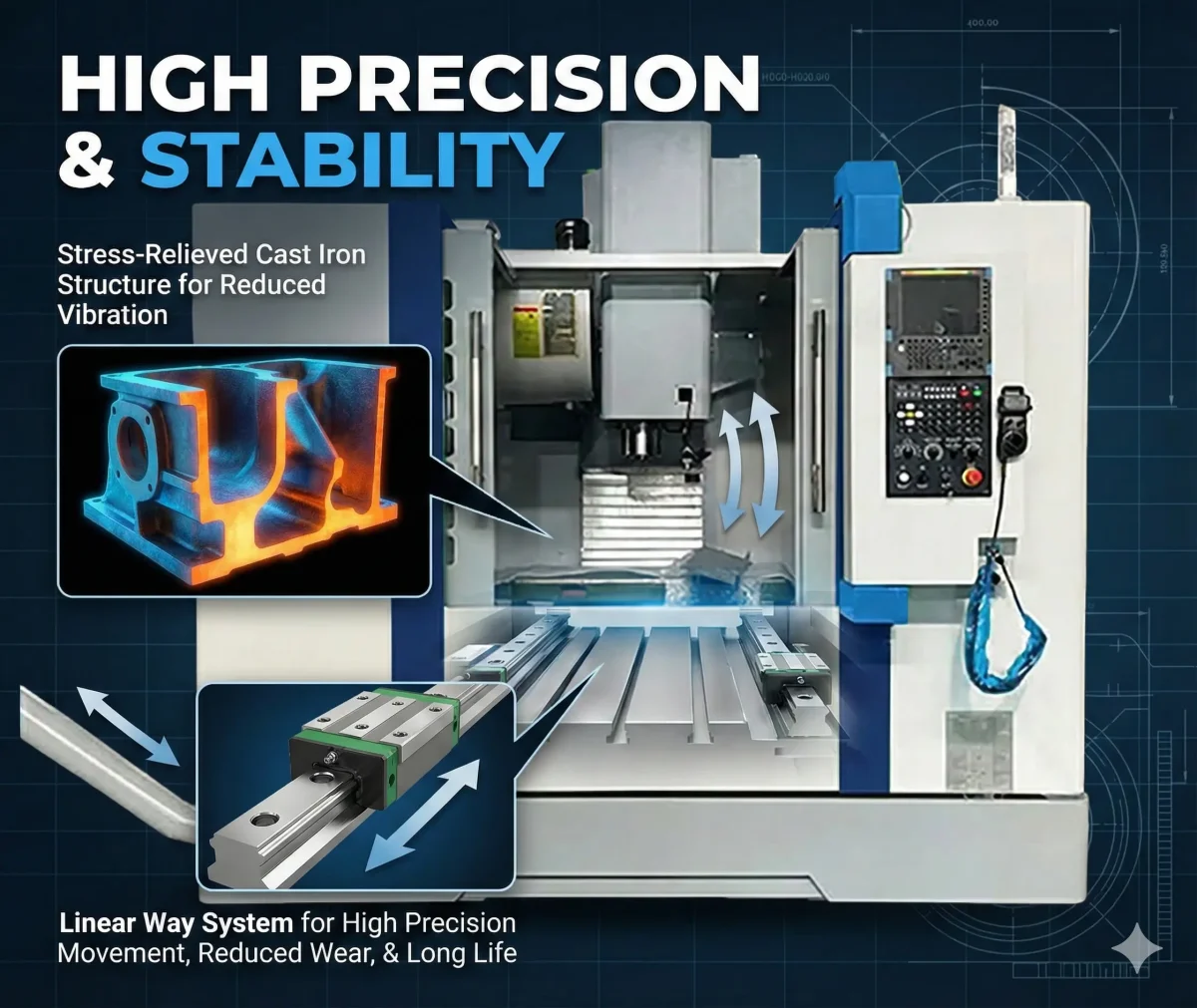

High Precision & Stability
The machine’s structure is constructed from premium-grade cast iron, subjected to a stress relief process to effectively dampen vibrations even during heavy-duty machining. Combined with a Linear Way system, it ensures exceptional positioning accuracy, reduces mechanical wear, and significantly extends the machine’s operational lifespan.
Compact Design, Maximum Efficiency
With X, Y, and Z-axis travels of 500 x 350 x 450 mm, the VMC 600 boasts a compact footprint that optimizes valuable factory floor space without compromising its ability to handle a diverse range of workpieces. It is perfectly suited for production lines requiring agility and maximum output in constrained areas.
Industrial-Grade Capabilities
Upgrade your production line’s potential with features and structural designs engineered specifically for demanding industrial applications. Minimize idle time, ensure smooth operations, and maintain flawless workpiece standards.
Rigid Spindle System
Vitae adipiscing tu enean ligula nibhmolestie id viverra dapilo eleifendA high-performance spindle system designed for rapid speeds and exceptional torque resistance, delivering superior accuracy even during heavy cutting applications.
Advanced CNC Controller
A state-of-the-art control system that processes G-Code commands with speed and precision. It features a user-friendly interface and supports versatile data transfer and connectivity options.
Fast Tool Change (ATC)
A high-speed, highly accurate Automatic Tool Changer (ATC) significantly reduces tool swap times, ensuring a seamless and continuous production process.
Professional Support
Gain peace of mind with our dedicated after-sales service provided by expert engineers By Machine Tech. We offer comprehensive consultation, operational guidance, and spare parts support to keep your machine running at peak performance.
Specification
| Description | Detail |
| Brand | Mc Mill |
| Model | VMC 600 |
| X-axis Travel | 500 mm. |
| Y-axis Travel | 350 mm. |
| Z-axis Travel | 450 mm. |
| Distance from Spindle Nose to Table | 100-550 mm. |
| Distance from Spindle Center to Column Face | 360 mm. |
| Table Size (LxW) | 800×260 mm. |
| T- Slot | 3x16x75 mm. |
| Max. Table Load | 200 Kgs. |
| X-axis Feed Rates | 30 M/min |
| Y-axis Feed Rates | 30 M/min |
| Z-axis Feed Rates | 30 M/min |
| Positioning Accuracy | 0.008/300 mm. |
| Repeatability | 0.005/300 mm. |
| X-axis Slipway Type | Linear Way |
| Y-axis Slipway Type | Linear Way |
| Z-axis Slipway Type | Linear Way |
| Spindle Type | BT-40 |
| Spindle Motor | 5.5/7.5 Kw. |
| Direct-Drive Spindle Speed | 8,000 rpm. |
| Machine Weight | 3200 Kgs. |
| Machine Dimensions (WxDxH) | 2100x1900x2200mm. |
